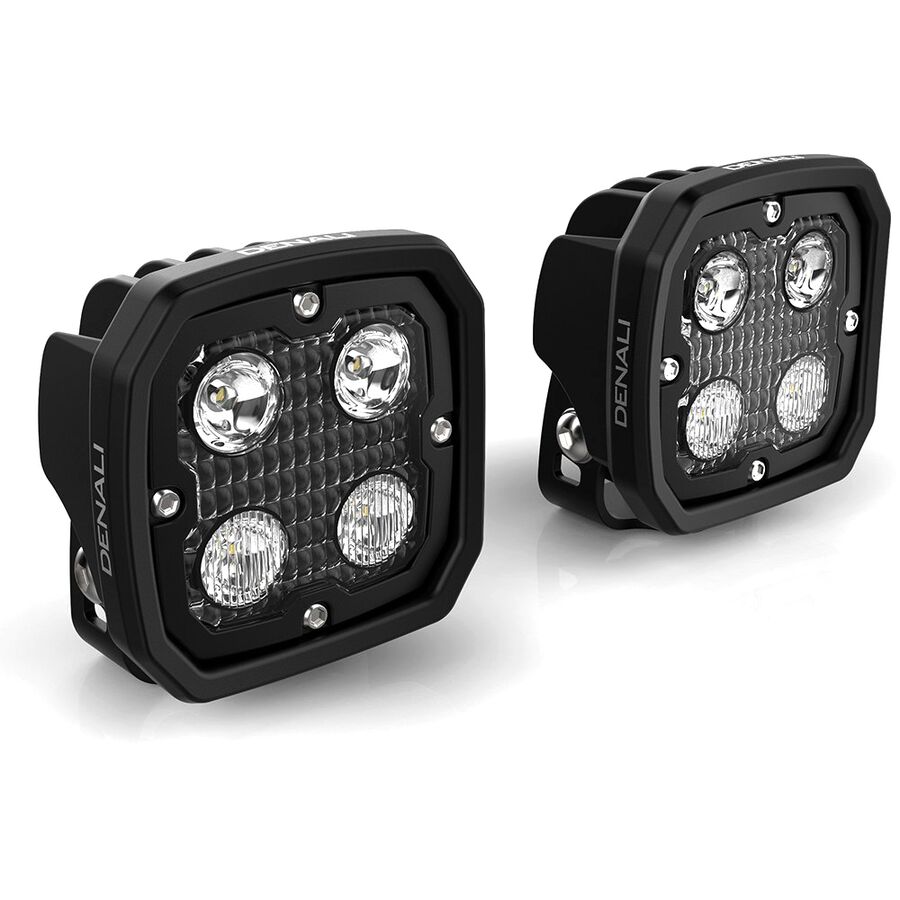

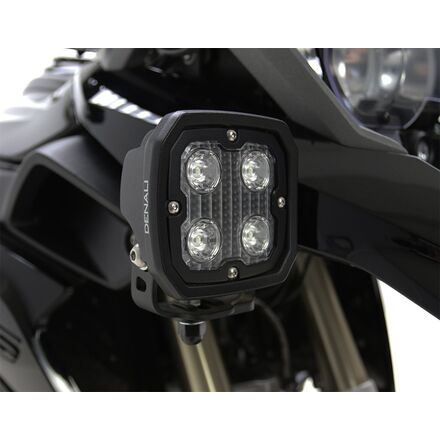

DENALI D4 Auxiliary LED Light Kit for Motorcycles, ATVs, UTVs, Snowmobiles, Jeeps and Trucks.
Simply put, the DENALI D4 is a beast. It is DENALI's most powerful light packing the punch of 8750 lumens in a pair of aggressively styled housings. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included pair of spot lenses throws a massive beam of light 800 feet and carries an official E-Mark certification.
DENALI's innovative DataDim Technology enables the lights to be upgraded in seconds to dual intensity by connecting a plug-and-play DataDim Controller (P/N DNL.WHS.11000; sold separately) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.
- Comprehensive nine-piece LED light kit specifically designed for powersports applications.
- High-Intensity Series Cree LEDs outputting 8760 lumens per kit.
- TriOptic Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one kit.
- DataDim equipped light pods and harness allow plug-and-play connection to the DataDim dimming controller (P/N DNL.WHS.11000; sold separately).
- Premium powersports harness with waterproof switch and handlebar switch mount included.
- DrySeal Submersible Waterproof light and switch housings can withstand the most extreme environments.
- Impact PC Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
- LiveActive Thermal Management keeps the LEDs cool preventing the loss of light output from overheating.
- Low-profile mounting bracket with stainless steel hardware included.
- Additional pair of E-Mark Approved flood lenses included.
- Amber lenses available (P/N DNL.D4.10100; sold separately).
- D4 Kit Technical Specs:
- LED's: (8x) 10 watt Cree XPL HI.
- Power draw: 6.6 amps.
- Beam distance (Spot): 800 feet.
- Beam width (Spot): 110 feet.
- Raw lumens: 8760.
- Intensity: Single Intensity harness.
- DataDim compatible: Yes.
- Operating voltage: 12 VDC.
- Pod size: 3.9" square x 2.6" deep (each).
- Pod weight: 1.55 pounds (each).
- IP67 waterproof and submersible.
- E-Mark Approved spot lenses.

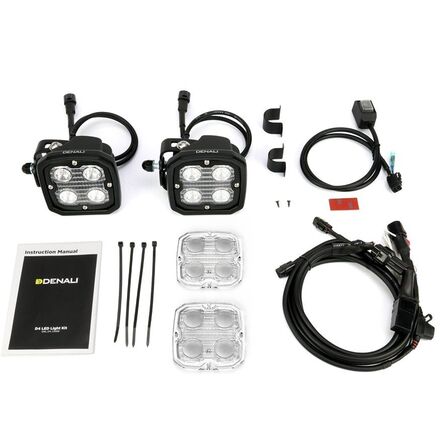

- D4 Kit - What's In The Box:
- (2x) LED Light Pods.
- (2x) True-Hybrid lenses (installed).
- (2x) E-Mark Approved spot lenses (included).
- (1x) HotSwap Single Intensity wiring harness.
- (1x) DrySeal waterproof illuminated switch.
- (1x) 7/8-inch handlebar switch mount.
- (1x) 1-inch handlebar switch mount.
- (2x) hinge mounts with M8 stainless steel hardware.
- (4x) zip ties.
- (1x) adhesive mounting square.
