KPMI Red 100% Viton valve stem seals are designed to have optimum fitment, allow, maximum lift, and to give maximum life. KPMI Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build-up and a loss of power. The Red Ones are truly the racers choice.
Detailed Specifications:
- Type: Intake / Exhaust.
- Material: Red Viton.
- Seal style: 4.
- Quantity: 2 Intake Seals / 2 Exhaust Seals.
- Intake stem diameter: 5.0 mm.
- Intake overall length: 0.350".
- Intake seal O.D.: 0.405".
- Intake (A): 0.340 0.005.
- Intake (B): 0.303".
- Intake (C): 0.125".
- Intake (D): 0.230".
- Exhaust stem diameter: 4.5 mm.
- Exhaust overall length: 0.331".
- Exhaust seal O.D.: 0.370".
- Exhaust (A): 0.321 0.002.
- Exhaust (B): 0.281".
- Exhaust (C): 0.120".
- Exhaust (D): 0.240".

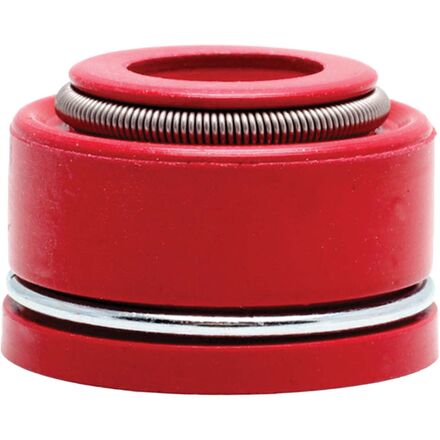

Note: Image is for reference only; actual product may vary according to fitment.
